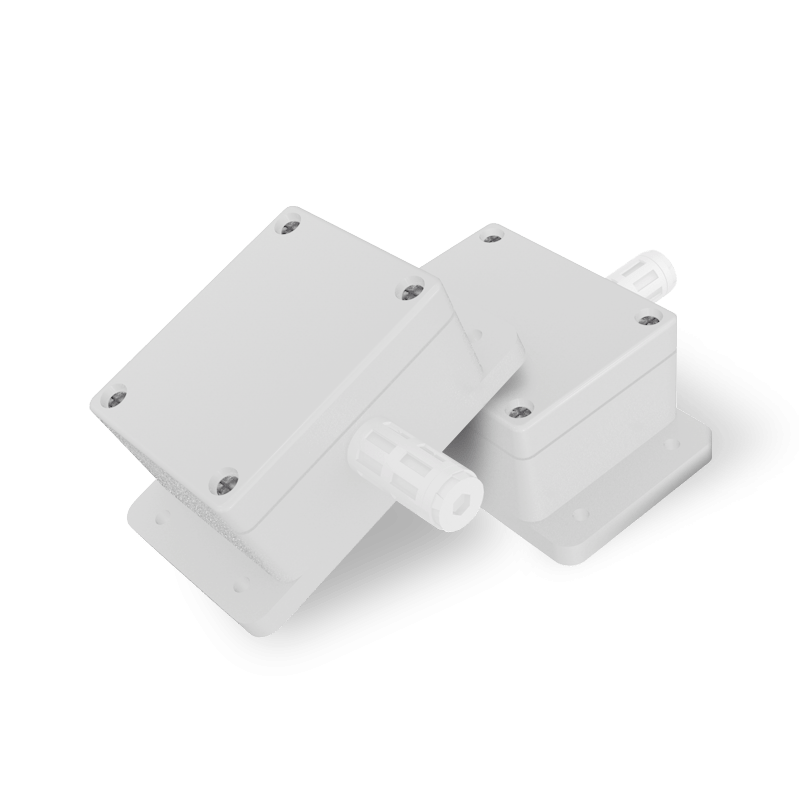

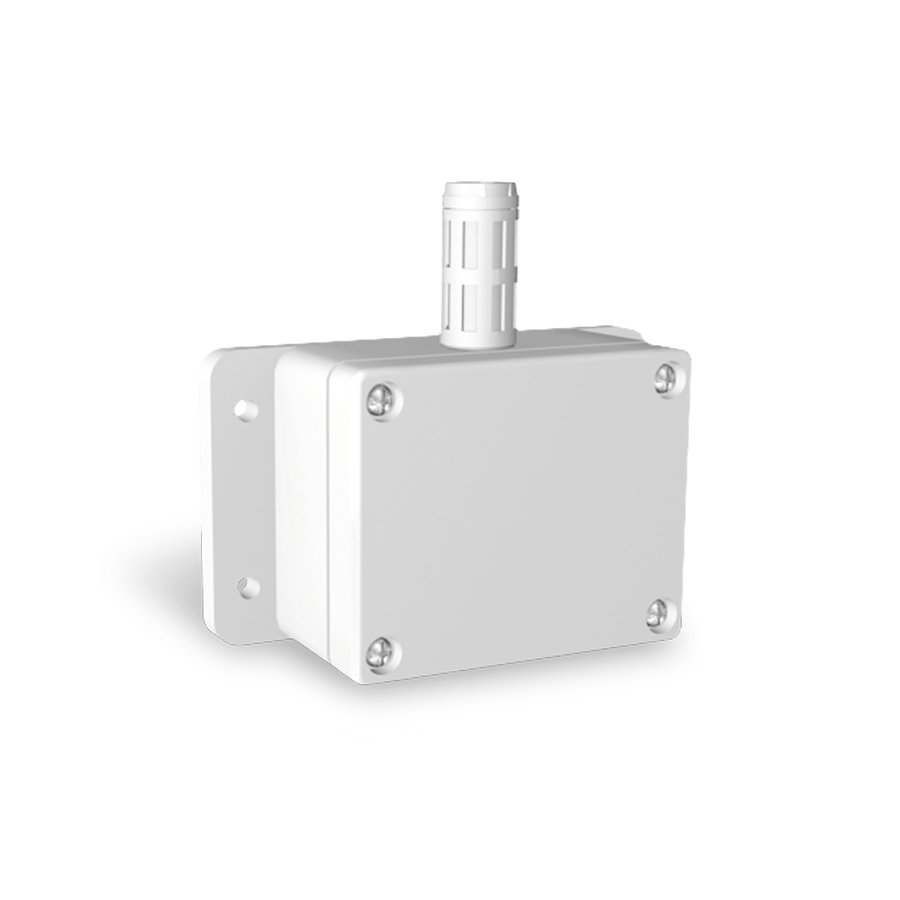

ES6 Bluetooth Temperature Sensor is a BLE Beacon featuring an ultra-low power nRF52 series chipset and BLE 5.0 technology. S6 Bluetooth temperature sensor is made from industrial plastic, comes with IP67 waterproof and dust proof.
It is suitalbe in different hostile environment.
S6 Temprerature and humidity industrial logger includes a high-accuracy temperature-humidity sensor and an optional 3-axis accelerometer. It is designed for applications such as temperature and humidity detection, asset tracking, and indoor location-based services.
IP67 Waterproof
Temperature & Humidity Sensor
PHY Coded Long Range
60,000 T&H Logger Records
>> DESCRIPTION
- High accurate temperature and humidity S6 sensor beacon with ±0.4°C accuracy ratings
- Long battery life of 8+ years powered by a 2600mAh ER14505 Lithium battery
- IP67 waterproof
- Reliable NORDIC ® nRF52 series chipset enables Bluetooth 5 compliance and PHY
- Support offline temp. & humidity records. Data logger over 60000+ records
- Compatible with iBeacon, Eddystone (UID, URL, TLM), Kbeacon and KSensor protocols simultaneously
- Programmable via the KBeacon Pro app or KKM Gateway to customize broadcast settings, thresholds, and more
S6 Temperature Sensor is a BLE Beacon featuring an ultra-low power nRF52 series chipset and BLE 5.0 technology. It is equipped with four screw holes for easy installation.
S6 temperature sensor tag includes a high-accuracy temperature-humidity sensor and an optional 3-axis accelerometer. It is designed for applications typically temperature and humidity detection. Thanks to its smart electronic design, powerful algorithm, strong and durable plastic, the S6 temperature & humidity sensor logger can apply to different scnearios such as smart farming, temperature monitoring in beach, seashore.
>> DOWNLOAD
S6 Temperature and Humidity Sensor
Support offline temp. & humidity records.
Data logger over 60000+ records
IP67 waterproof & Battery replaceable design
Compatible with iBeacon and Eddystone (UID, URL, TLM) and Kbeacon and KSensor at the same time.
All the parameters of this product can be modified via configure APP or KGateway.
>> how it works
>> PRODUCT Application
Smart Agriculture
S6 temperature sensor is widely used in temperature and humidity monitoring in greenhouses, soil, open-air environment, plant foliage, grain, and vegetable and fruit storage
Smart Cold Chain
Place S6 temperature sensor beacon in every clinic, pharmacy, laboratory, etc, real time through a continuous wireless temperature and humidity monitoring solution
>> Specification
Size
88mm*58mm* 35mm
Material
ABS
Color
Gray (colors customizable)
Weight
103g (with battery)
Battery capacity
2600mAh ER14505 Lithium
battery
Battery life
8 years
IP rating
IP67 waterproof
Working temperature
-40℃ ~+70℃
Working humidity
0 ~ 99% RH
Button
1 Button (internal)
Switch
Hall
Sensor
Temperature or Humidity Probe
Accelerometer Sensor
Config APP
KBeaconPro
Accelerometer
Range: +/-2g
Measure Accuracy: +/-32mg
Bluetooth Version
BLE 5.0/ BLE 4.x
OTA
Yes
TX power
-40~8dBm
Broadcast Interval
100ms ~ 40000ms
Transmit Range
300 meters in open area
